Cut to Length

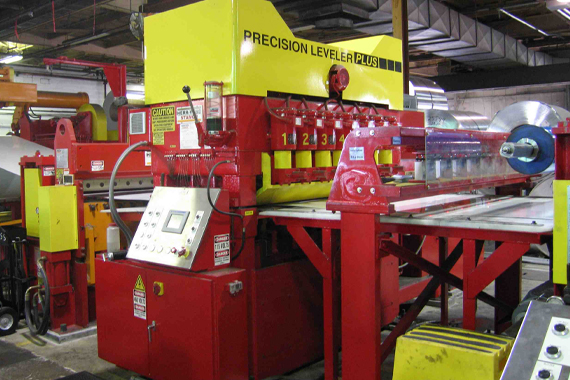

Herr Voss Light Gauge CTL
Our light gauge CTL features complete Herr-Voss technology, including leveling capability, as well as precision metering roll technology to exceed your quality expectations.
- 62" max incoming coil width
- 192" max fixed stacker length
- Stainless: .018-.120
- Aluminum: .020-.125
- Coated products, nickel alloys on application
- 60,000 lbs max coil – 16" min ID; 72"" max OD
Red Bud Light Gauge CTL / Precision Blanking with Herr Voss leveling
Our Herr-Voss/Red Bud multi-blanking cut to length line accommodates the most demanding quality and tolerance concerns, whether you're running pattern size sheets or multiple close tolerance blanks. Capable of holding length and width tolerances of +/-.005" during blanking applications.
- 72" max incoming coil width
- 192" standard stacker length – longer on application
- Stainless: .015-.140
- Aluminum: .020-.190
- Coated products, nickel alloys on application
- 60,000 lbs max coil – 20" min ID; 80" max OD
- Blanking:
Narrowest cut: 4"
Shortest length: 12"
Max cuts at 12 ga = 4
Max cuts 14-24 ga = 6
Requires ½" total scrap trim

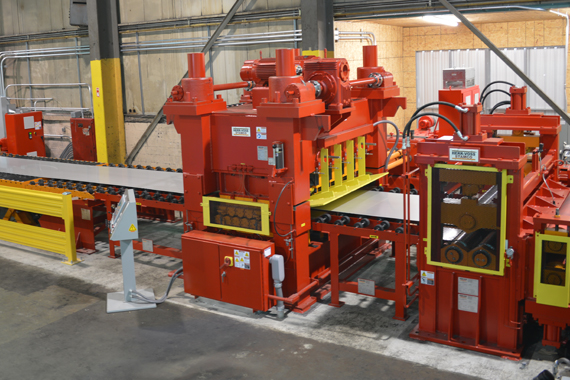

Herr Voss Plate CTL
Our heavy gauge CTL line offers the most sophisticated Herr Voss technology available to the heavy gauge market. Full leveling capabilities, combined with a precision metering roll and shallow looping system, provides our customers with superior laser quality flatness, length and diagonal tolerances, while providing surface critical, non-marked product.
- 80" max width, 24" min width incoming coil
- 480" lengths, and longer on application
- 50,000 lbs max incoming coil
- 16"-32" Incoming ID; 29"-84" Incoming OD
- Stainless: .105-.375
- Aluminum: .190-.500
- Coated products, nickel alloys on application
